Gooseneck
The Gooseneck is designed to be an efficient trailer to deliver loads that don’t require the mobilization of your largest trucks.
| LENGTH | GVW(lbs) | WEIGHT(lbs) | BED HEIGHT | WIDTH |
|---|---|---|---|---|
| 32' | 25,500 | 9,500 | 40" | 101" |
| 36' | 25,500 | 9,840 | 40" | 101" |
THE GOOSENECK'S STANDARD FEATURES
Unique Roller System Safeguards Your Trusses
- 2’ Gap Between Rollers Decreases Truss Stress and Flex
- 5” Rollers Raised Above Side Rail Decreases Offload Catching
- Raised Gap Creates Forklift Accessible Slot
- Mesh Between Rollers Decreases Moisture Buildup
A Small Trailer For Big Jobs

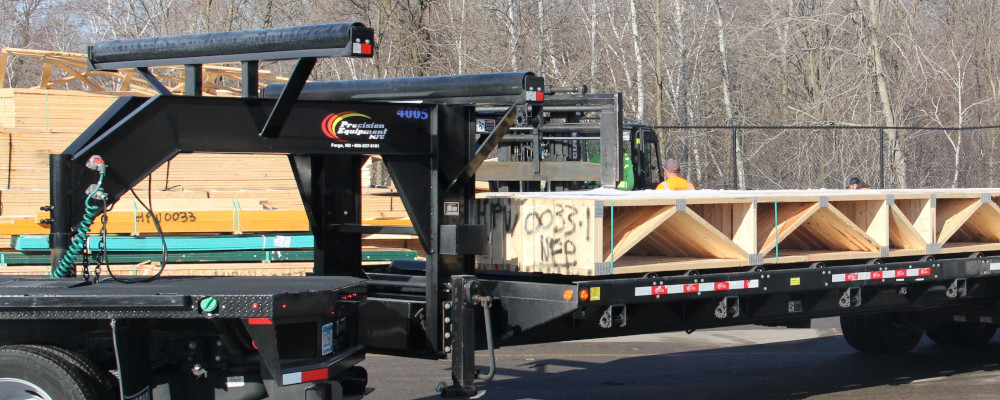

- 12″ x 19″ I-Frame Gooseneck

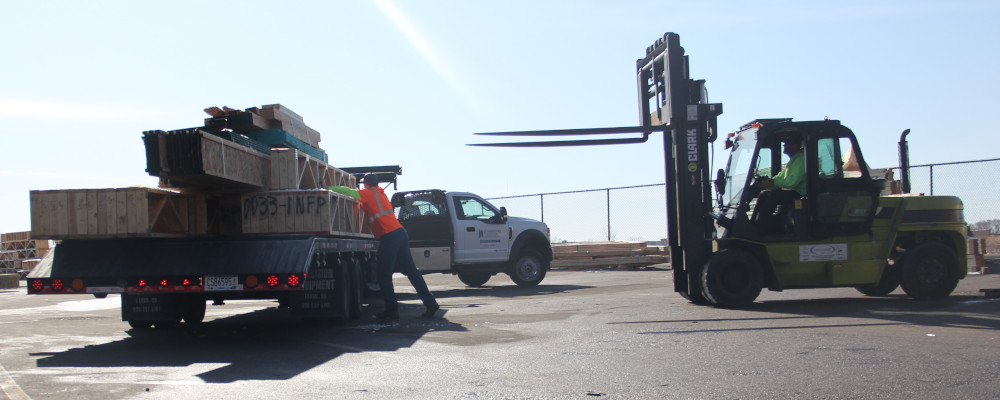

- Low Deck Height For Easier Access
- Gooseneck Rollers for Long Loads
- Designed for Versatile Trucks
Engineered To Exacting Standards In Fargo, ND
- Sealed Ball Bearings on Rollers
- Reinforced Dual Rear Rollers
- Durable Powder Coat Finish
Built To Maintain Safe Operations
- Electric Over Hydraulic Disk Brakes
- Patented Strap Locks Secure Loads Where Needed
- 40″ Height with Rear Dovetail
- Highly Visible LED Lights
- Strobe Lights Brightly Illuminate Operations
Hydraulics For Quick and Easy Deliveries

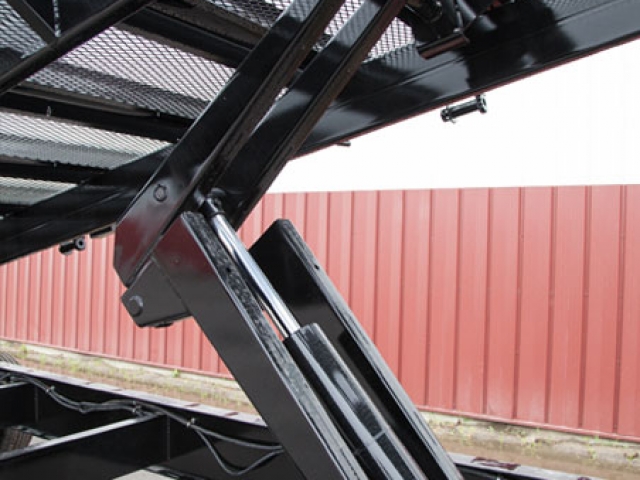

- Hydraulic tilt deck system to limit load drop height
- Push Button Hydraulic Controls with a Wireless Hydraulic Controller
- Easily accessible and self-contained hydraulic power unit
BACKED BY A
ROCK SOLID WARRANTY
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
More Features
And Information
| Standard Features | |
|---|---|
| 10,000 lb. Alko Axles | 12" x 19" W-Beam Frame and Gooseneck |
| 16-Ply Dual Wheels | 2 Spring Loading Landing Legs |
| 4" Ratcheting Strap Locks | 5" Rollers 2' on Center |
| Dovetail On Rear of Trailer | Electric Over Hydraulic Disk Brakes |
| LED Lighting System | Load Control Brakes on Rollers |
| Mesh Between Rollers | Patented Strap Locks |
| Roller on Top of Gooseneck | Rollers Raised Above Rail |
| Sandblasted & Primed w/PPG Polyurethane Paint | Sealed Ball Bearings on Rollers |
| Self-Contained Hydraulic Power Unit | Strobe Lighting |
| Wireless Hydraulic Operation | |
| Optional Features | |
|---|---|

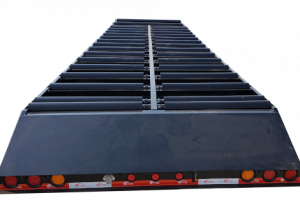

| Split Rollers | 12,000 lb. Axle |
| 5th Wheel Coupler | 4"x35' Load Straps |
